HYC 200 kW
With its 200 kW output, the HYC 200 allows for the simultaneous charging of two vehicles at 100 kW each.
HYC 400 kW
A charging capacity of 400 kW is ideal for significantly reducing the charging times of high-performance commercial and electric vehicles.
Scalability

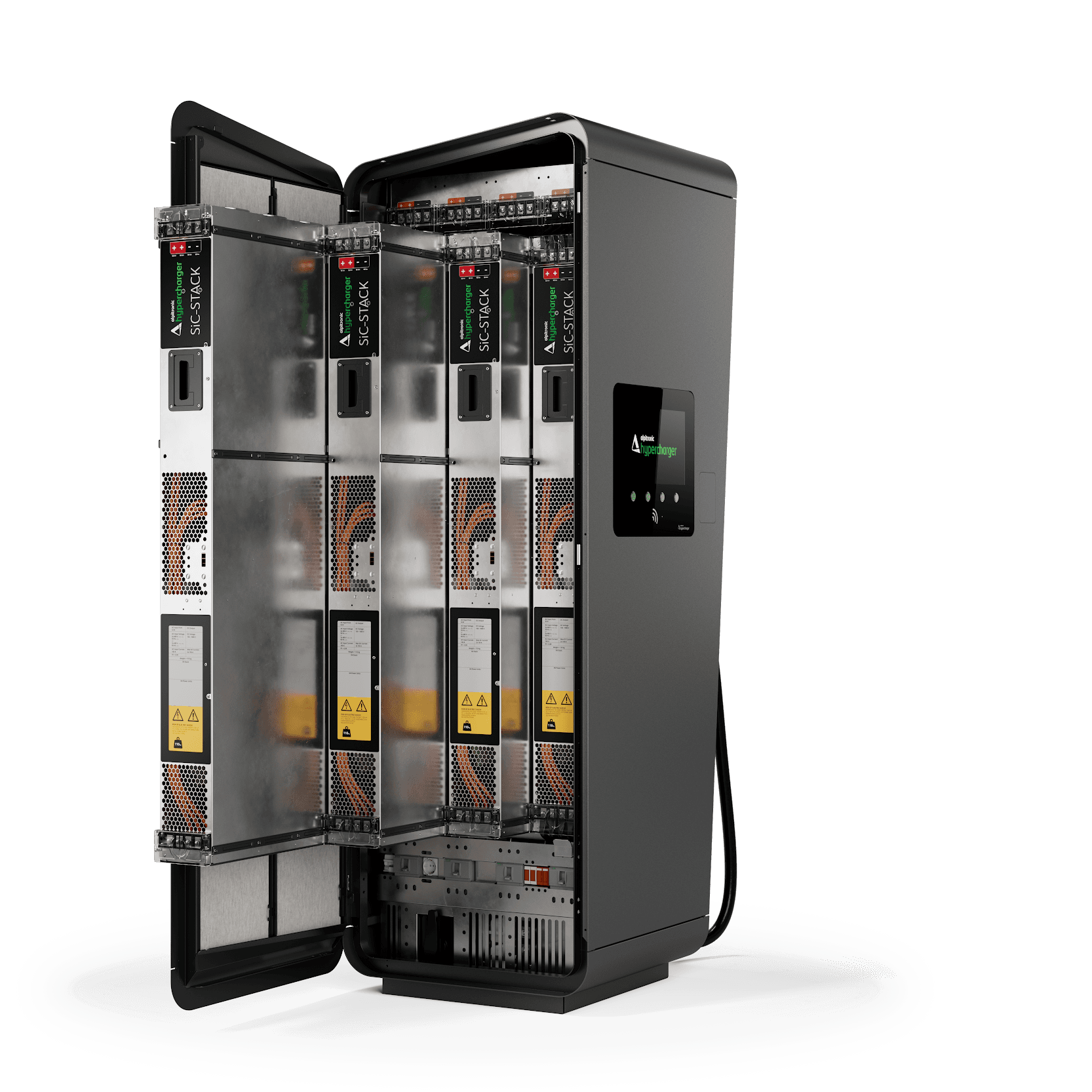

The concept of Power-Stack allows for a transition from 100 kW to 200 kW in the case of HYC 200 and up to 400 kW for HYC 400.

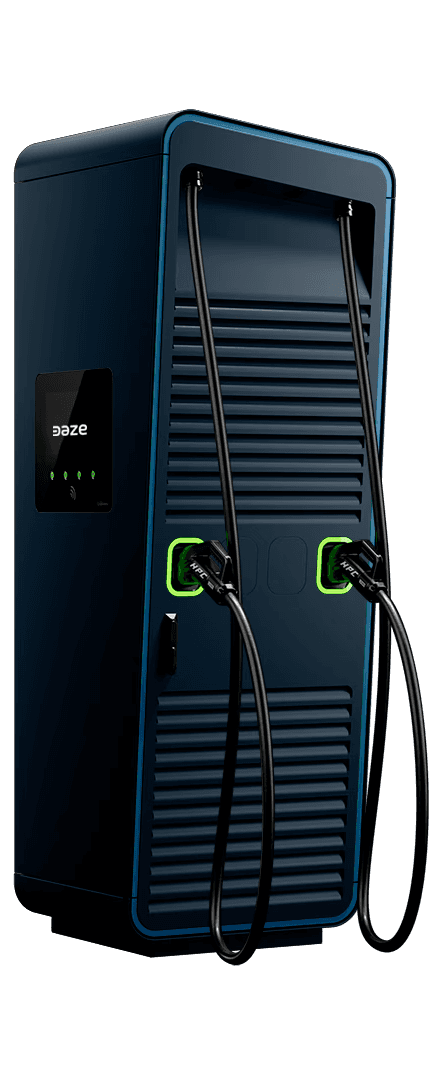

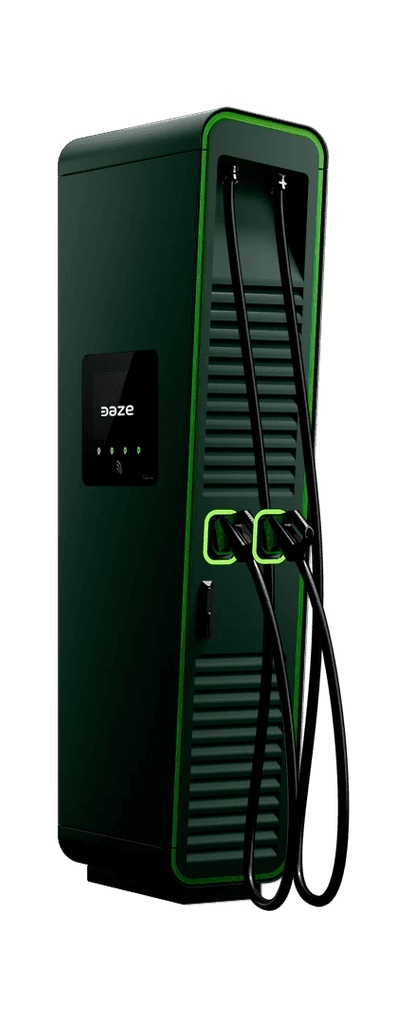

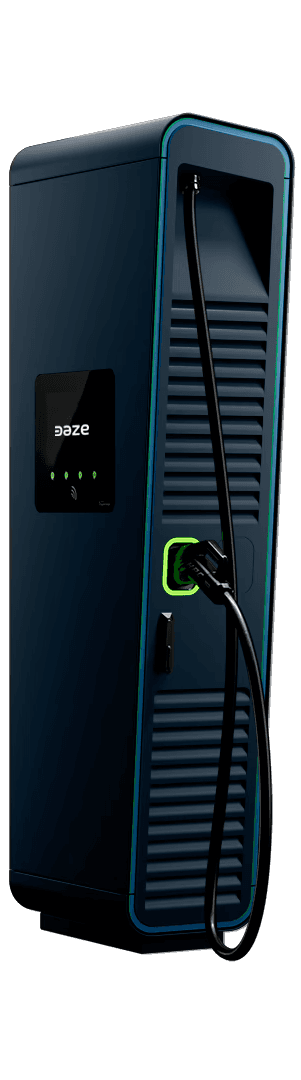

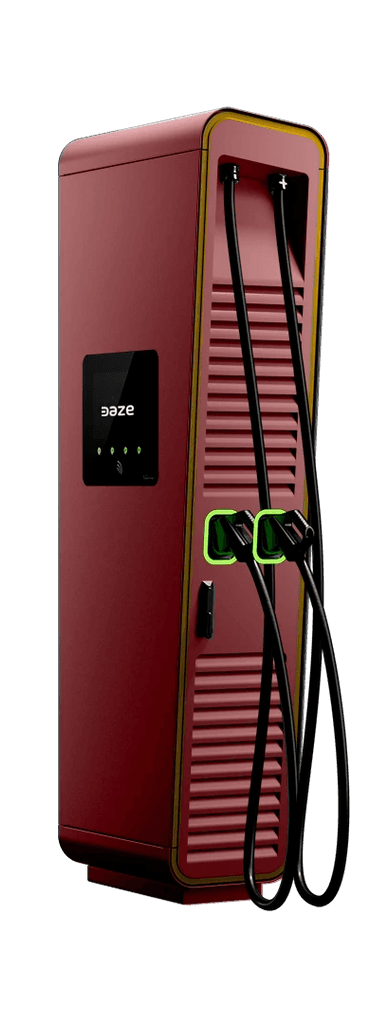

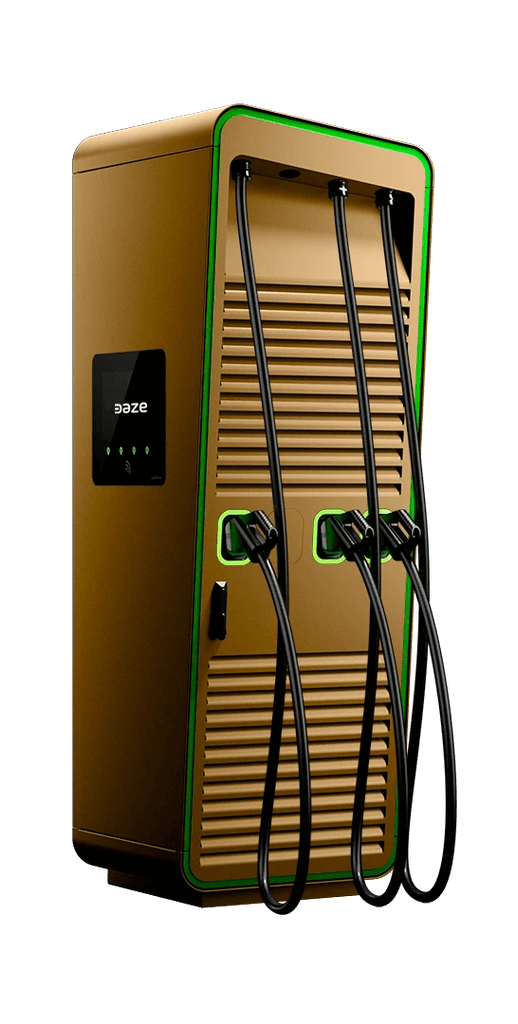

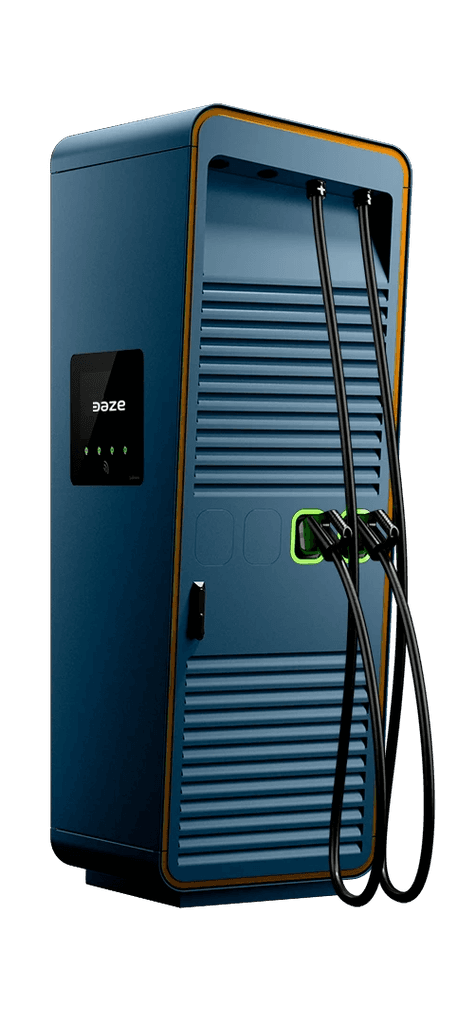

Customise with style
Cover only part of the column or the entire surface? You decide! The result is a unique charging station, personalized with a covering that can be replaced at any time to achieve a new look.
Cable management system
The cable management system ensures ease of use and greater longevity of the cables.
The Hypercharger post-sales team provides reliable support 24/7, including remote and on-site assistance. We handle all technical issues, repairs, and maintenance, working with certified local partners for problem resolution. Service options are flexible and include support for CPMS integration.
Hypersuite
Create and manage all documents for the Hypercharger fleet. Train teams with official Hypertraining courses. Customize Hypercharger and upload the ideal configurations.
Technical specifications
General specifications
• Body dimensions (HYC200): 2185 x 420 x 663 mm
• Body dimensions (HYC400): 2185 x 732 x 663 mm
• Installation: on the ground
• Operating temperature: from -30° C to +55° C
• Charging mode: mode 4
• IP protection rating: IP55
• IK protection rating: IK10
Electric
• Maximum supply current: 144 A (one Power-Stack) / 289 A (two Power-Stack) / 433 A (three Power-Stack) / 577 A (four Power-Stack)
• Maximum power: 100 kW (one Power-Stack), max. 300 A / 200 kW (two Power-Stack), max. 500 A / 300 kW (three Power-Stack), max. 1x500 A + 1x300 A or 2x450 A / 400 A (four Power-Stack), max. 2x500 A

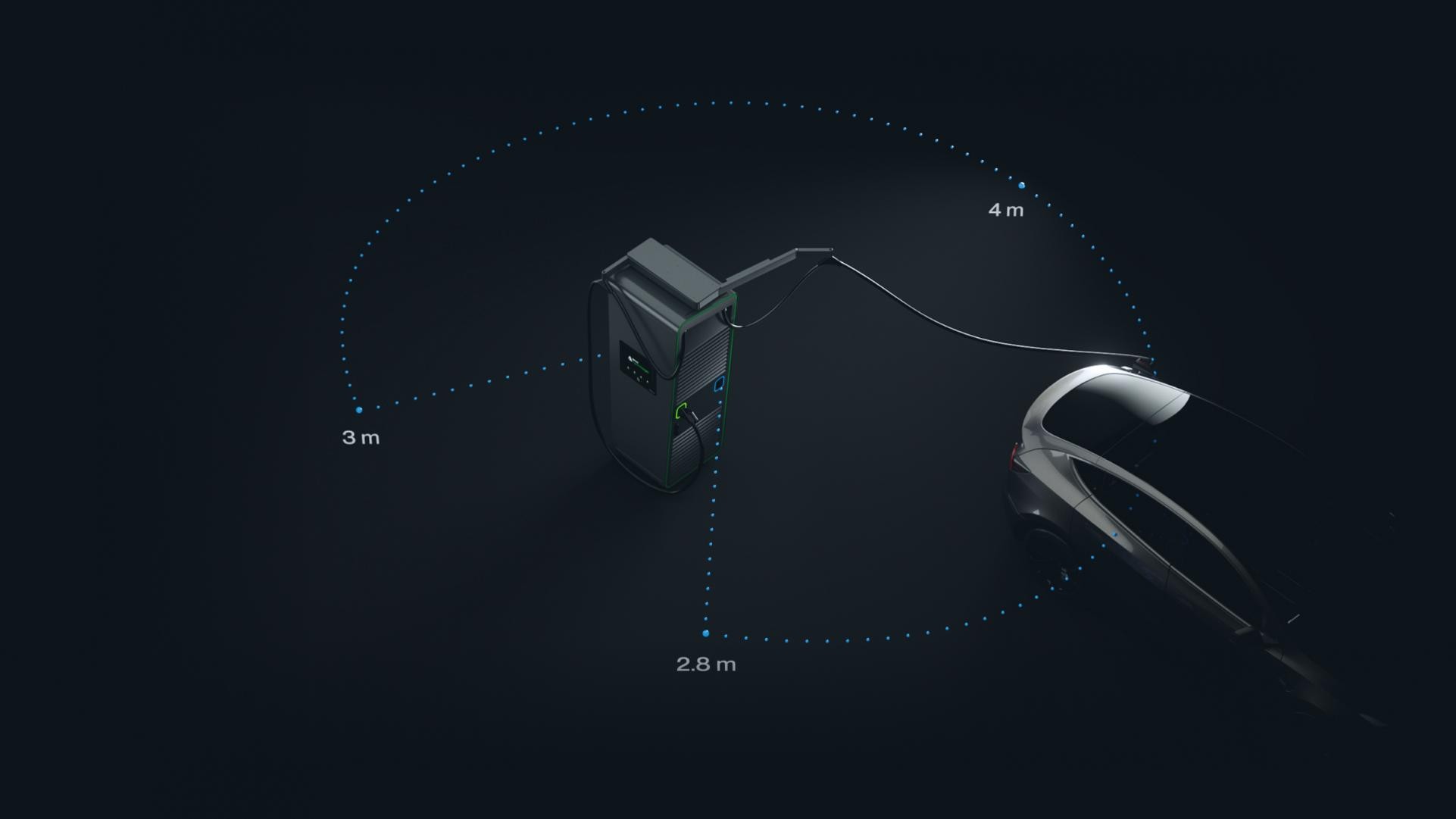

• Cable length of the connector: 3.5 m / 4.5 m
Functionality
• Connectivity: wifi, ethernet and 4G
• Power distribution granularity: 50 kW
• Charging: from 150 to 1000 V

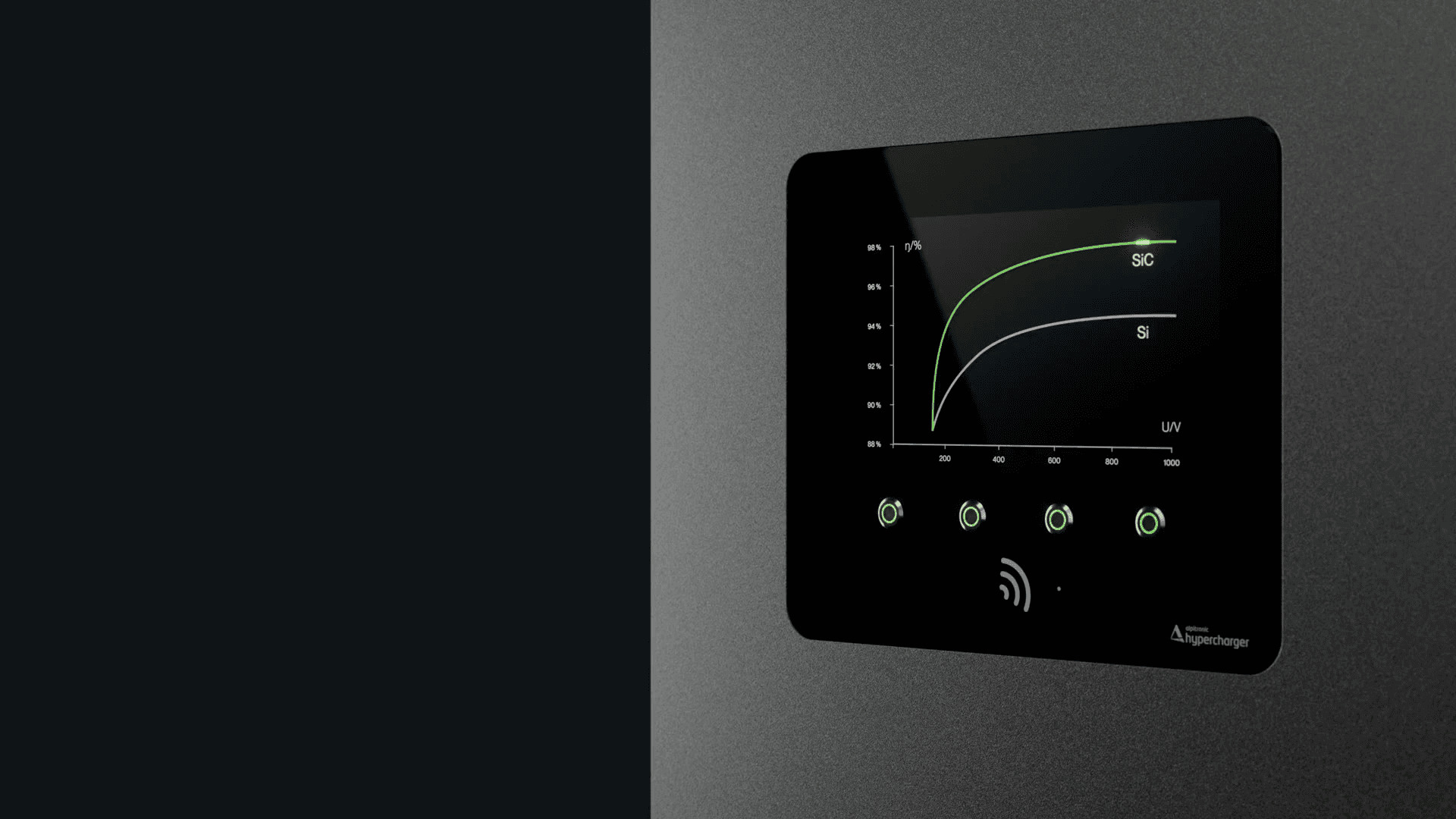

• Color touch screen: 15.6"

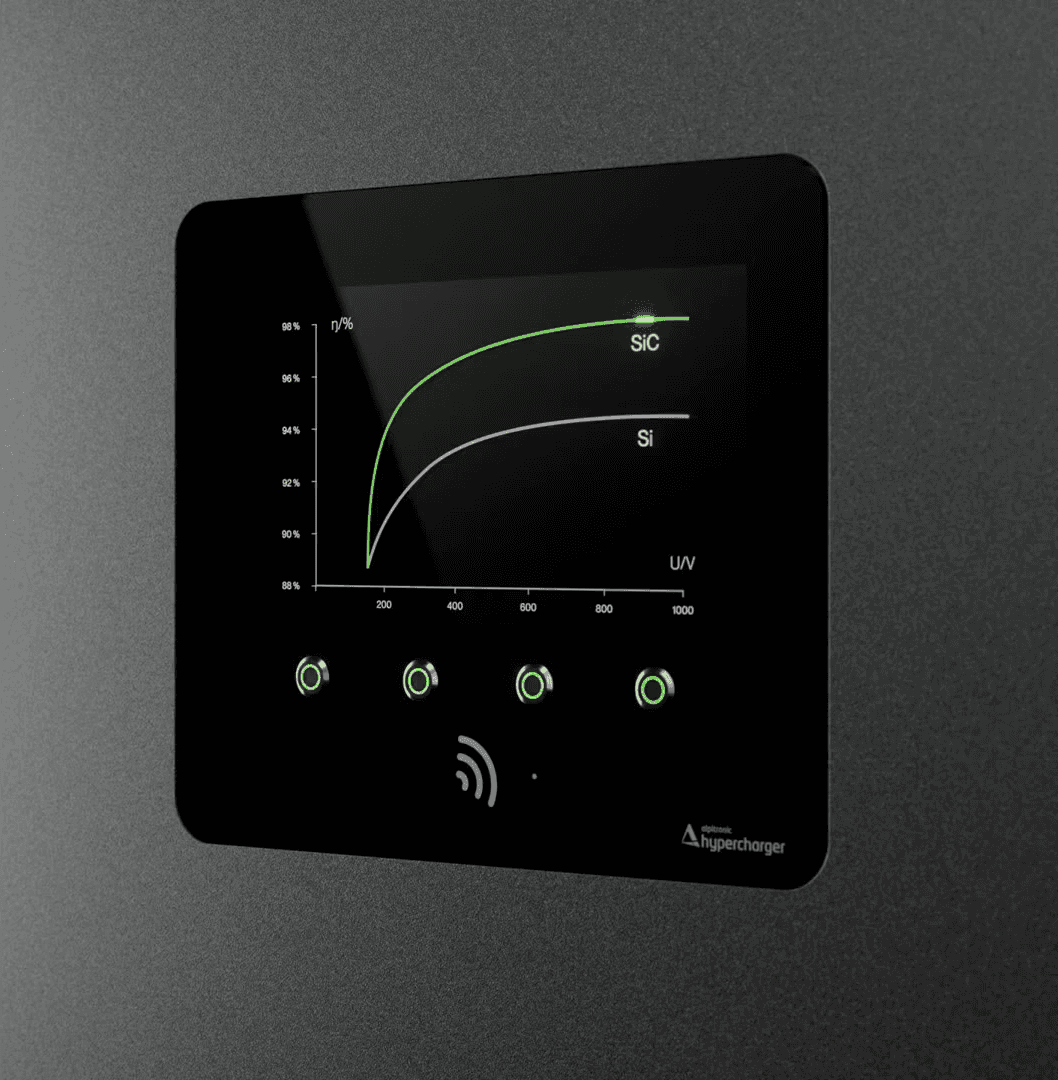

• Conversion efficiency: 97.5%
• Body material: AISI 304 steel
• RFID reader: yes
• Cooling system for high temperatures: integrated
• V2G ready: yes
• OCPP 1.6 Json interoperability: yes
